Facility Control

FIN MILL (NORMAL SPEED)

SPEC

Material : Aluminum & Copper
Material Thickness : 0.025 ~ 0.3 mm
Fin Height Range : 1.2 ~ 32 mm
Fin Width Range : 10 ~ 100 mm
Fin Length : Variable
Cutting Speed : Max 90 cuts / min
Input Feed Speed : Max 250 meter / min
Two Coils Standard : 545 kg / coil
Material Outside Diameter : Max 1,800 mm
Material Inside Diameter : 200 ~ 300 mm
Material Width : Max 100 mm
Machine Size : 6,000 x 1,800 x 2,000 mm
Machine Weight : 5 tons
Delivery Date : PO + 3 month (shipping)

※ It is subject to change according to the specification.

Side packing unit — four orange packing rolls on a steel base — 〈 Side Packing Unit 〉

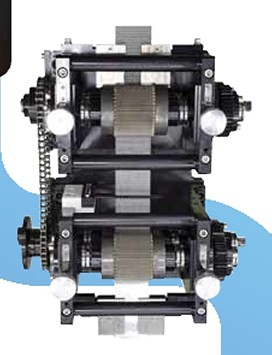

Form roll — pair of meshing gear rolls — 〈 FOMR ROLL 〉

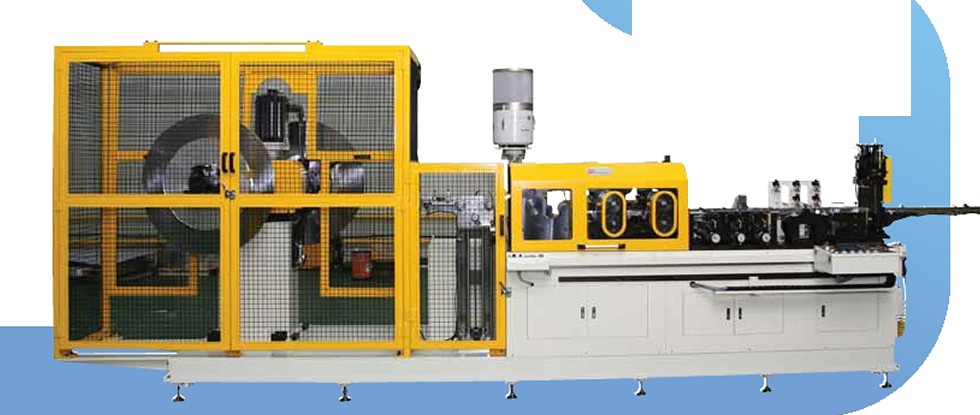

FIN MILL (NORMAL SPEED) — fin mill line with yellow safety fence

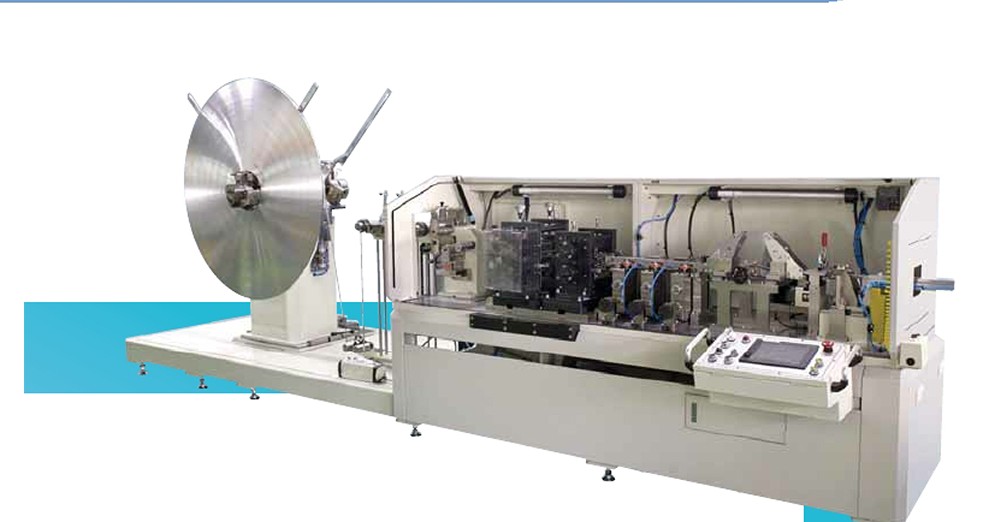

FIN MILL (HIGH SPEED) line with aluminum coil uncoiler disc

FIN MILL (HIGH SPEED)

SPEC

Material : Aluminum & Copper
Material Thickness : 0.025 ~ 0.3 mm
Fin Height Range : 1.2 ~ 32 mm
Fin Width Range : 10 ~ 100 mm
Fin Length : Variable
Cutting Speed : Max 130 cuts / min
Input Feed Speed : Max 350 meter / min
Two Coils Standard : 545 kg / coil
Material Outside Diameter : Max 1,800 mm
Material Inside Diameter : 200 ~ 300 mm
Material Width : Max 100 mm
Machine Size : 6,500 x 1,800 x 2,100 mm
Machine Weight : 5 tons
Delivery Date : PO + 3 month (shipping)

※ It is subject to change according to the specification.

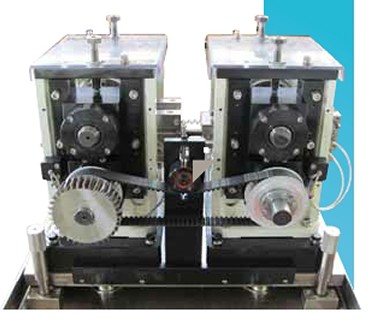

High speed fin mill twin forming head unit

Side packing unit with three packing stations — 〈 Side Packing Unit 〉

Fin buffer unit with hand wheel — 〈 Fin Buffer Unit 〉

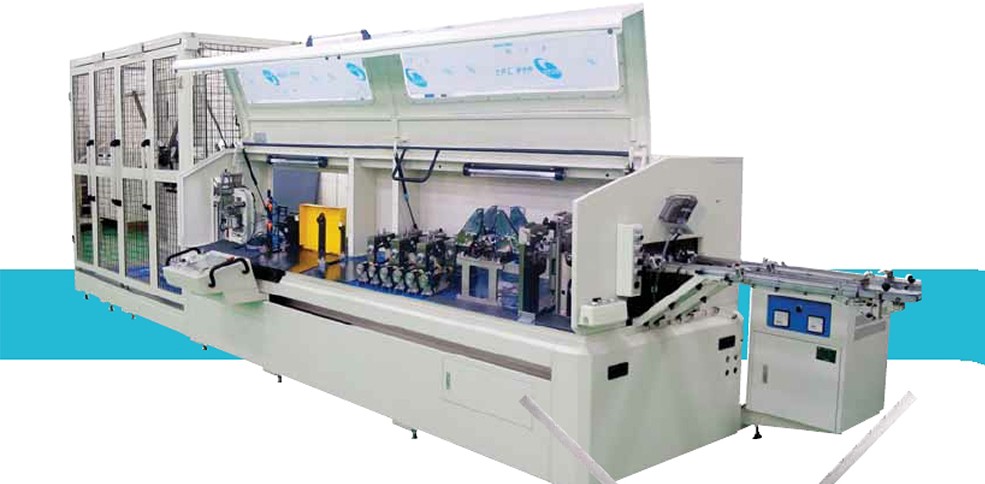

FIN MILL (HIGH SPEED) machine line covered with protective film

FIN MILL (2 OUT)

SPEC

Material : Aluminum & Copper
Material Thickness : 0.025 ~ 0.3 mm
Fin Height Range : 1.2 ~ 32 mm
Fin Width Range : 10 ~ 100 mm
Fin Length : Variable
Cutting Speed : Max 80 cuts / min
Input Feed Speed : Max 250 meter / min
Two Coils Standard : 545 kg / coil
Material Outside Diameter : Max 1,800 mm
Material Inside Diameter : 200 ~ 300 mm
Material Width : Max 100 mm
Machine Size : 6,000 x 2,000 x 2,000 mm
Machine Weight : 6 tons
Delivery Date : PO + 4 month (shipping)

※ It is subject to change according to the specification.

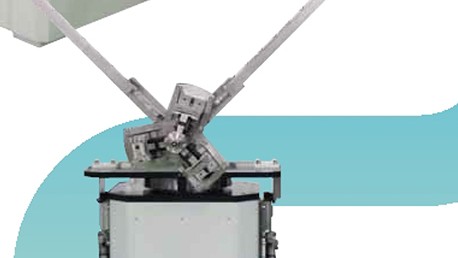

2-out fin mill uncoiler with V-shaped feeding arms

Fin slitting unit with red slitting roll — 〈 Fin Slitting Unit 〉

Side packing roll unit — three stations with orange rolls — 〈 Side Packing Roll Unit 〉

Upper and lower roll adjustment levers — 〈 Upper / Lower 〉

FIN STACKER

SPEC

Fin Stacker Speed : Max 100 cuts / min
Tray Storage : 20 tray
Operator : 1 man
Machine Size : 1,600 x 800 x 1,600 mm
Machine Weight : 1 tons
Delivery Date : PO + 2 month (shipping)

※ It is subject to change according to the specification.

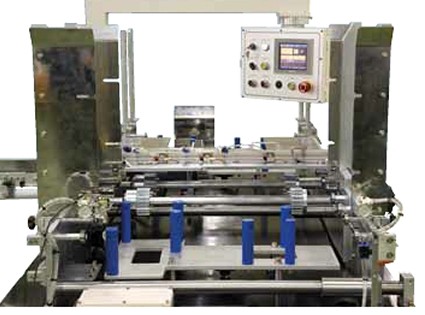

Fin stacker machine with blue stacking pins

Yellow fin tray filled with stacked fins — 〈 Fin Tray (options) 〉

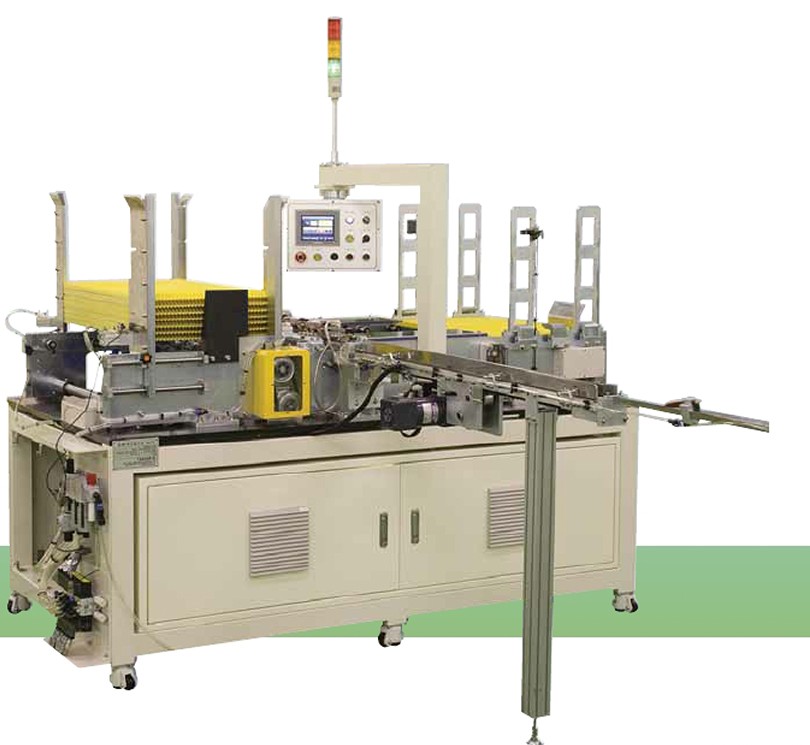

Fin stacker line with signal tower and tray magazines

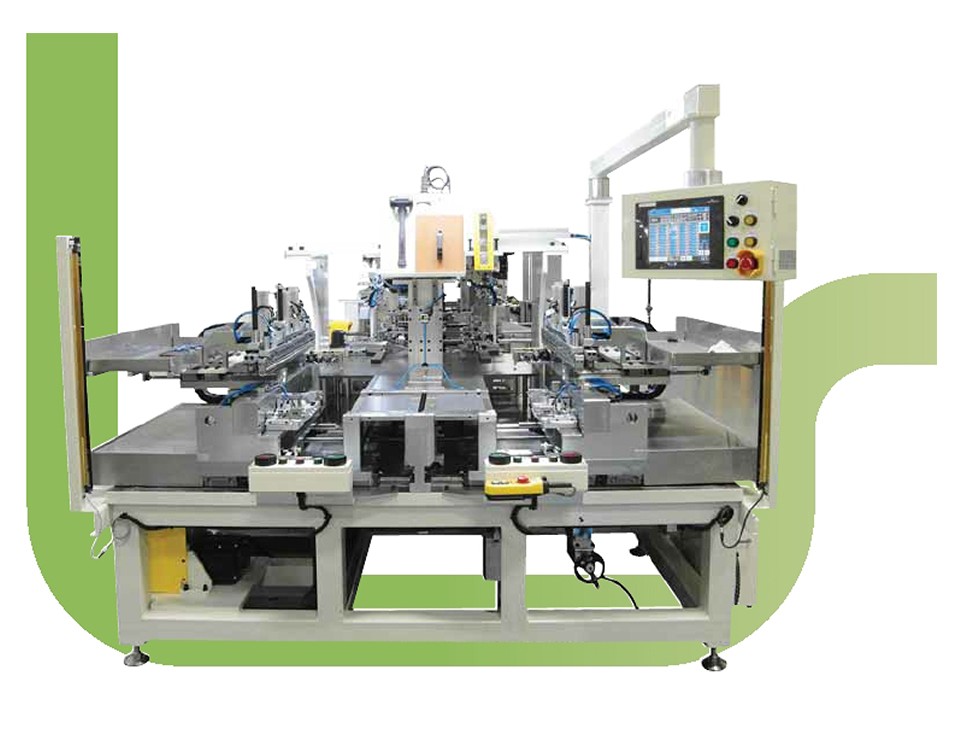

Fin stacker core assembly table machine

MATRIX CORE BUILDER (RADIATOR or CONDENSOR)

SPEC

Capacity : 80 cores / 1 hour
Tube Dispenser Speed : Max 80 tubes / min
Core Size : Header to Header : 350 ~ 800 mm
- Support to Suppoer : 300 ~ 800 mm
- Core Thickness : 10 ~ 25 mm
Model Tool’s Exchange Time : 15 minutes / 1 man
Operator : 1 man (with fin mill)
Machine Size : 4,000 x 2,700 x 2,400 mm
Machine Weight : 7 tons
Delivery Date : PO + 4 month (shipping)

※ It is subject to change according to the specification.

Radiator header tooling bars — 〈 RAD’ Tooling 〉

Condenser header tooling with carrying handles — 〈 COND’ Tooling 〉

Core assembly unit table — 〈 CORE Ass’y Unit 〉

Fin and tube assembly unit — 〈 FIN + TUBE Ass’y Unit 〉

MATRIX CORE BUILDER (HEATER or EVA)

SPEC

Capacity : 90 cores / 1 hour
Tube Dispenser Speed : Max 80 tubes / min
Core size : Header to Header : 150 ~ 300 mm
- Support to Suppoer : 100 ~ 300 mm
- Core Thickness : 20 ~ 30 mm
Model Tool’s Exchange Time : 15 minutes / 1 man
Operator : 1 man
Machine Size : 3,500 x 2,400 x 2,200 mm
Machine Weight : 5 tons
Delivery Date : PO + 4 month (shipping)

※ It is subject to change according to the specification.

Fin and tube feeding section — 〈 FIN + TUBE 〉

Tube supply unit with stacked tubes — 〈 TUBE Supply Unit 〉

Core assembly unit with assembled core — 〈 CORE Ass’y Unit 〉

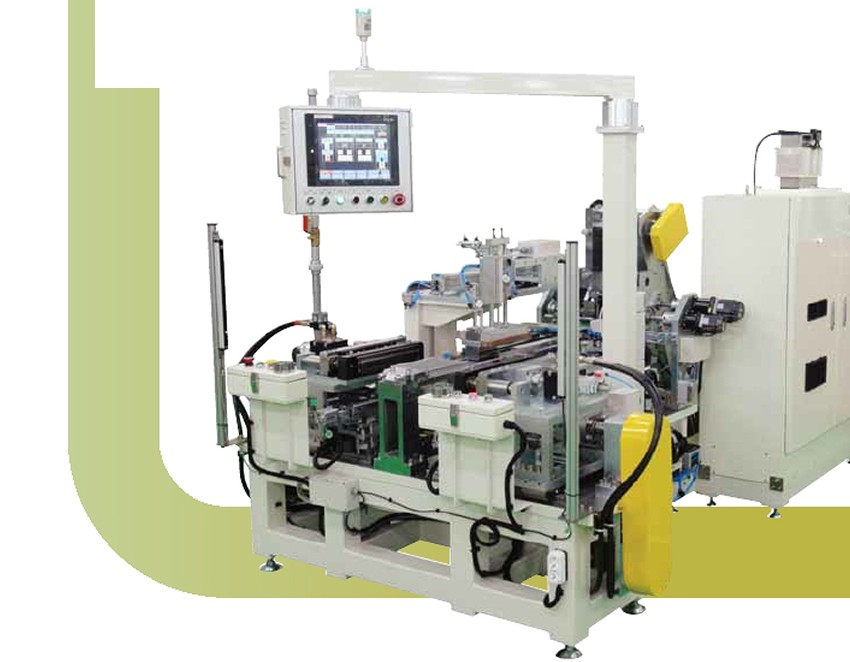

MATRIX CORE BUILDER (HEATER or EVA) machine with overhead control arm

MATRIX CORE BUILDER (INTERCOOLER or CAC)

SPEC

Capacity : 75 cores / 1 hour
Tube Dispenser Speed : Max 30 tubes / min
Core Size
- - Header to Header : 350 ~ 800 mm
- - Support to Suppoer : 80 ~ 250 mm
- - Core Thickness : 30 ~ 90 mm
Model Tool’s Exchange Time : 15 minutes / 1 man
Operator : 1 man
Machine Size : 3,800 x 2,700 x 2,400 mm
Machine Weight : 6 tons
Delivery Date : PO + 4 month (shipping)

※ It is subject to change according to the specification.

Tube expanded tooling with comb plates — 〈 Tube Expanded Tooling 〉

Picket assembly unit — 〈 Picket Ass’y Unit 〉

Tube dispenser unit with rotary disc — 〈 Tube Dispenser Unit 〉

Fixture assembly unit frame — 〈 Fixture Ass’y Unit (options) 〉

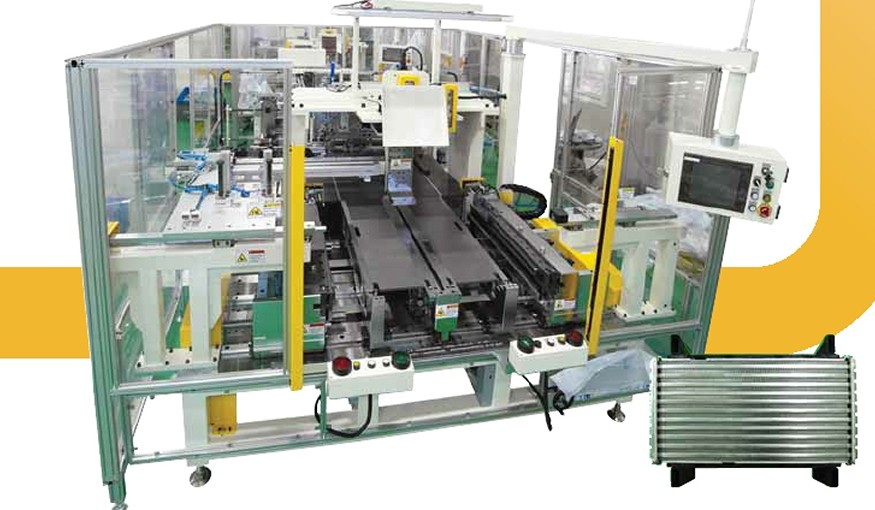

MATRIX CORE BUILDER (INTERCOOLER or CAC) machine with safety fence

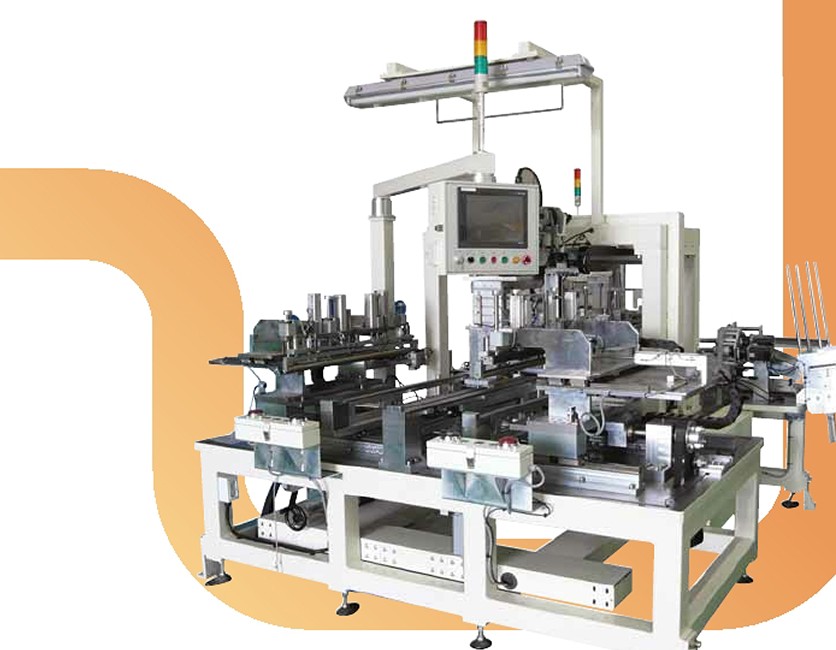

MATRIX CORE BUILDER (2 ROW CORE) machine with signal tower

MATRIX CORE BUILDER (2 ROW CORE)

SPEC

Capacity : 50 cores / 1 hour
Tube Dispenser Speed : Max 60 tubes / min
Core Size : Header to Header : 150 ~ 300 mm
- Support to Suppoer : 100 ~ 300 mm
- Core Thickness : 30 ~ 60 mm
Model Tool’s Exchange Time : 20 minutes / 1 man
Operator : 1 man
Machine Size : 4,000 x 2,700 x 2,400 mm
Machine Weight : 7 tons
Delivery Date : PO + 4 month (shipping)

※ It is subject to change according to the specification.

Tube dispenser unit feeding tubes — 〈 Tube Dispenser Unit 〉

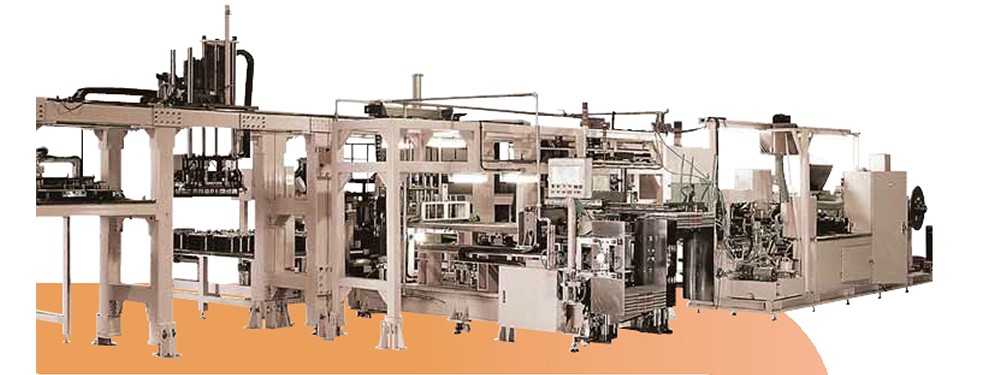

AUTO CORE BUILDER (RADIATOR or CONDENSOR) full automatic line

AUTO CORE BUILDER (RADIATOR or CONDENSOR)

/ CYCLE TIME : 35 SEC /

SPEC

Capacity : 120 cores / 1 hour
Tube Dispenser Speed : Max 120 tubes / min
Core Size : Header to Header : 350 ~ 800 mm
- Support to Suppoer : 300 ~ 800 mm
- Core Thickness : 10 ~ 30 mm
Model Tool’s Exchange Time : 30 minutes / 1 man
Operator : 1 man
Machine Size : 10,000 x 7,500 x 2,800 mm
Machine Weight : 10 tons
Delivery Date : PO + 6 month (shipping)

※ It is subject to change according to the specification.

AUTO CORE BUILDER (RADIATOR) SUPERFAST

/ CYCLE TIME : 20 SEC /

SPEC

Capacity : 200 cores / 1 hour
Tube Dispenser Speed : Max 200 tubes / min
Core Size : Header to Header : Special core
- Support to Suppoer : Special core
- Core Thickness : Special core
Model Tool’s Exchange Time : 30~60 minutes / 1 man
Operator : 1 man
Fin Mill : 2 set
Machine Size : 15,000 x 9,500 x 2,800 mm
Machine Weight : 14 tons
Delivery Date : PO + 8 month (shipping)

※ It is subject to change according to the specification.

Fin stacker unit of superfast line — 〈 FIN Stacker Unit 〉

Fin pallet with stacked fins — 〈 FIN Pallet 〉

Tube supply unit of superfast line — 〈 Tube Supply Unit 〉

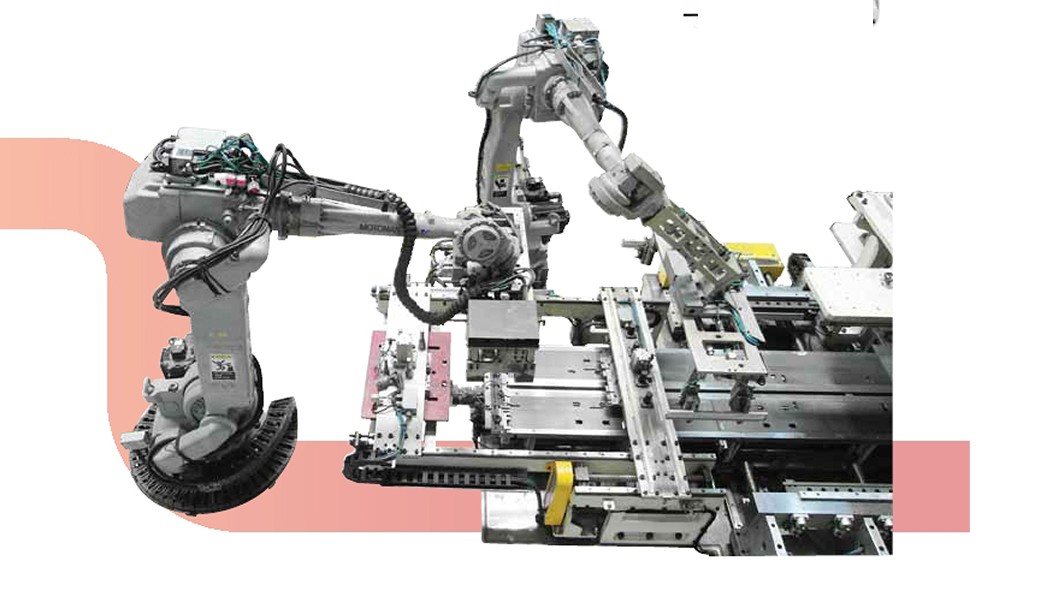

Superfast auto core builder robot cell with two industrial robots

AUTO CORE BUILDER (HEATER)

/ CYCLE TIME : 15 SEC /

SPEC

Capacity : 200 cores / 1 hour
Tube Dispenser Speed : Max 100 tubes / min
Core Size
- - Header to Header : 150 ~ 300 mm
- - Support to Suppoer : 100 ~ 300 mm
- - Core Thickness : 20 ~ 30 mm
Model Tool’s Exchange Time : 30~40 minutes / 1 man
Operator : 1 man
Machine Size : Separately indicated
Machine Weight : 8 tons
Delivery Date : PO + 5 month (shipping)

※ It is subject to change according to the specification.

Core assembly unit with yellow guards — 〈 Core Ass’y Unit 〉

Fin pallet feeding station — 〈 Fin Pallet 〉

Core unloading unit with overhead gripper — 〈 Core Unloading Unit 〉

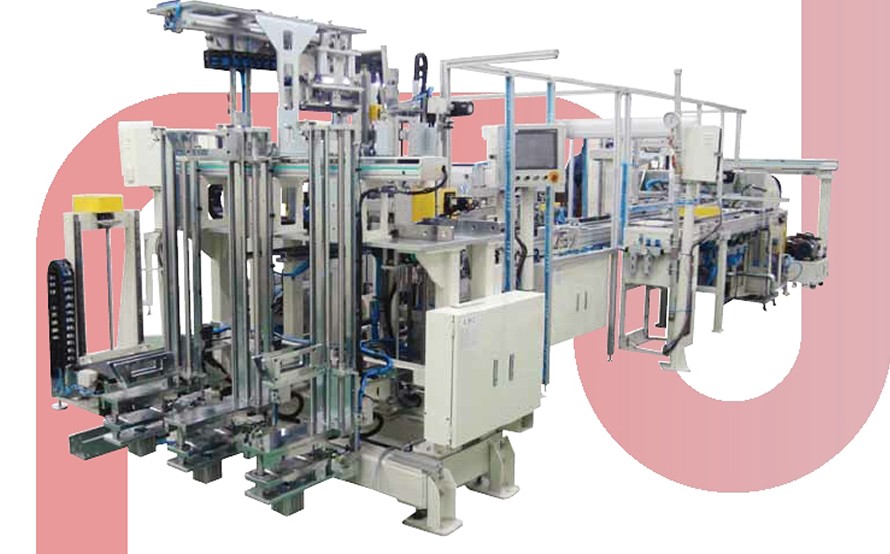

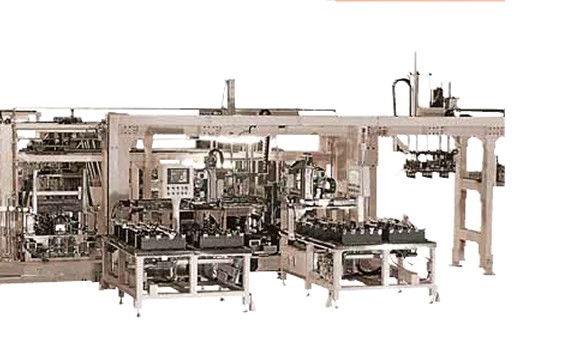

AUTO CORE BUILDER (HEATER) line — assembly stations

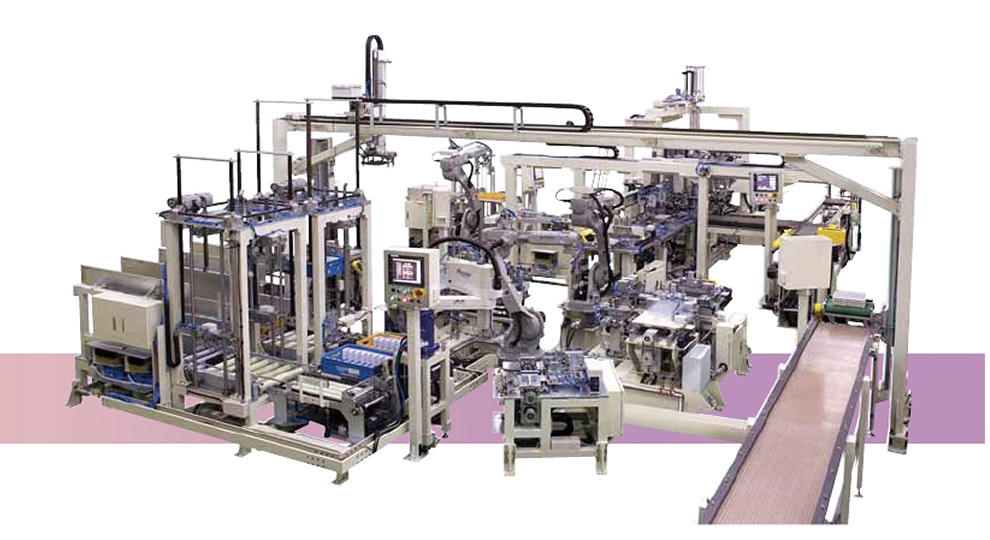

AUTO CORE BUILDER (HEATER) line with unloading conveyor

AUTO CORE BUILDER (EVA)

/ CYCLE TIME : 15 SEC /

SPEC

Capacity : 200 cores / 1 hour
Tube Dispenser Speed : Max 100 tubes / min
Core Size
- - Header to Header : 150 ~ 300 mm
- - Support to Suppoer : 100 ~ 300 mm
- - Core Thickness : 20 ~ 30 mm
Model Tool’s Exchange Time : 30~40 minutes / 1 man
Operator : 1 man
Machine Size : Separately indicated
Machine Weight : 8 tons
Delivery Date : PO + 6 month (shipping)

※ It is subject to change according to the specification.

Core wire unit with blue pneumatic lines — 〈 Core Wire Unit 〉

Fin and tube assembly unit with fin magazine — 〈 Fin + Tube Ass’y Unit 〉

Tube dispenser unit with aligned tubes — 〈 Tube Dispenser Unit 〉

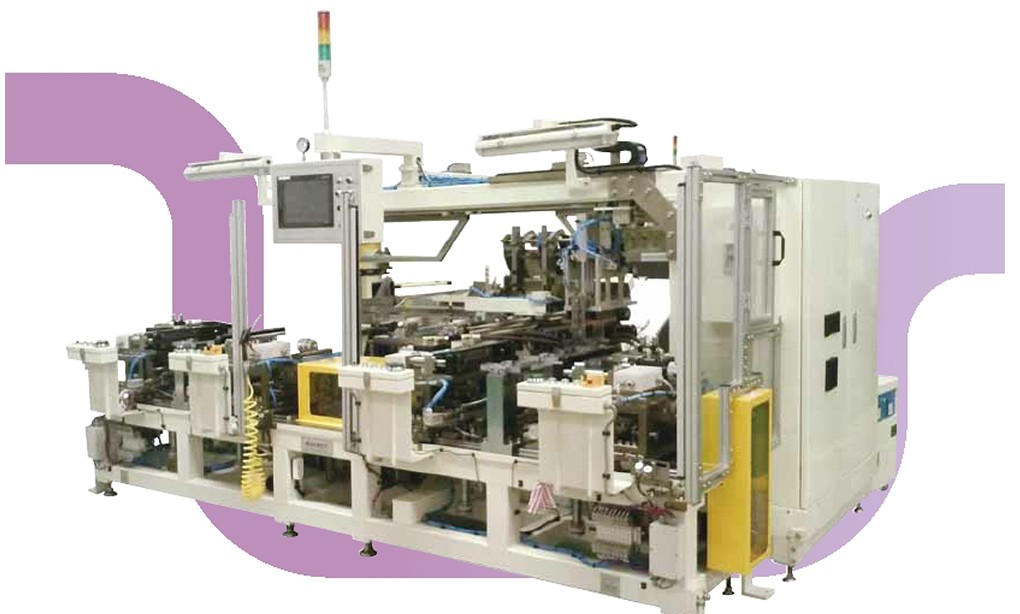

AUTO CORE BUILDER (EVA) machine with signal tower

TOW STATION CORE BUILDER (HEATER or EVA)

SPEC

Capacity : 160 cores / 1 hour
Tube Dispenser Speed : Max 80 tubes / min
Core Size : Header to Header : 150 ~ 300 mm
- Support to Suppoer : 100 ~ 300 mm
- Core Thickness : 30 ~ 60 mm
Model Tool’s Exchange Time : 20 minutes / 2 man
Operator : 2 man
Fin Mill : 1 set
Machine Size : Separately indicated
Machine Weight : 6 tons
Delivery Date : PO + 5 month (shipping)

※ It is subject to change according to the specification.

Manual core builder frame table

MENUAL CORE BUILDER

SPEC

Capacity : 60 cores / 1 hour
Tube Dispenser : Operator supply
Core Size : Designation
Model Tool’s Exchange Time : 20 minutes / 1 man
Operator : 1 man
Fin Mill : Not need
Machine Size : Various
Machine Weight : 2 tons
Delivery Date : PO + 2 month (shipping)

※ It is subject to change according to the specification.

CAC header tooling with comb fingers — 〈 CAC Header Tooling 〉

Core assembly unit fixture — 〈 Core Ass’y Unit 〉

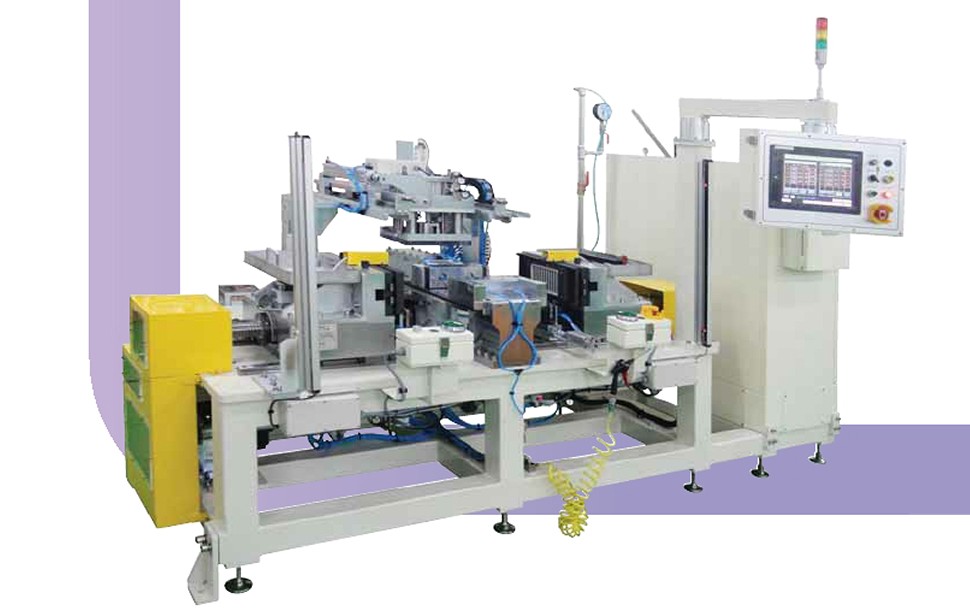

Manual core builder station with control panel

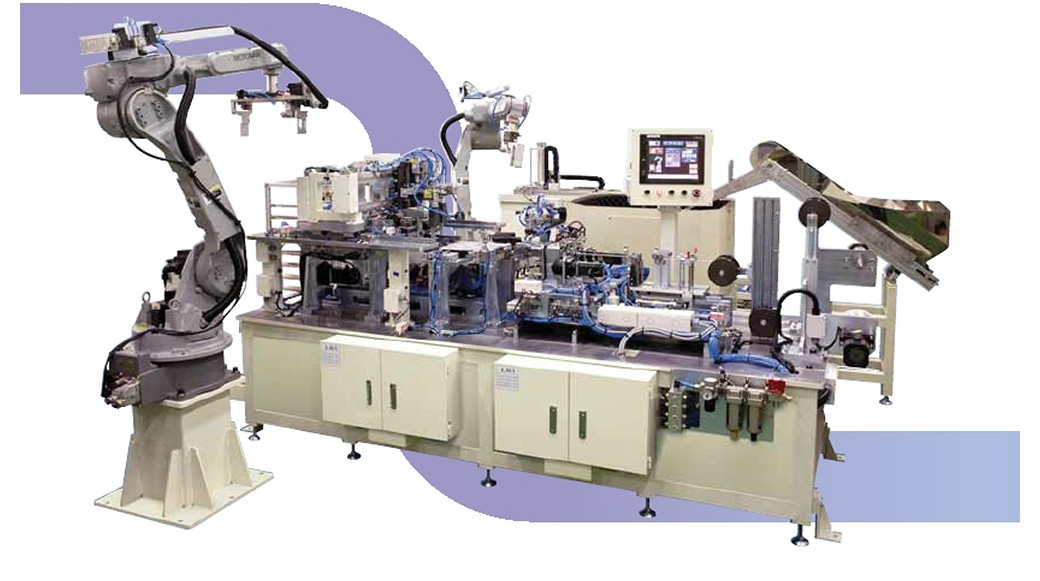

WIRE BENDING MACHINE

SPEC

Capacity : 60 cores / 1 hour
Core Supply & Unloading : Operator
Core Size
- - Header to Header : 150 ~ 350 mm
- - Support to Suppoer : 100 ~ 300 mm
- - Core Thickness : 30 ~ 60 mm
Model Tool’s Exchange Time : 30 minutes / 1 man
Operator : 1 man
Machine Size : 2,000 x 3,000 x 1,800 mm
Machine Weight : 2 tons
Delivery Date : PO + 4 month (shipping)
